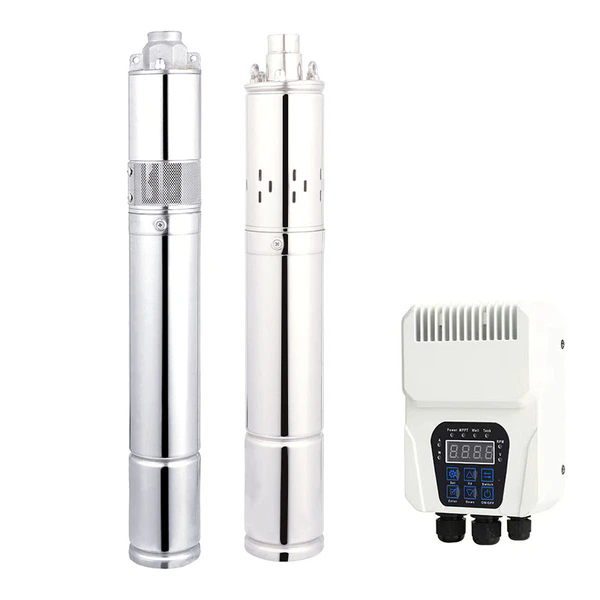

Profile:

Adopt stainless steel screw and rubber stator, permanent Magnet Brushless

motor. With combination of motor and controller, the max efficiency is over

85%, raises 25% than the traditional AC one.

2. Material:

1) Stainless steel casing, shaft core, coupling and pump body; copper alloy

connecting, base; rubber stator of high-strength and wear-resistant.

2) Oil immersion style stainless steel submersible motor.

Product Feature:

1) Compact structure, high-lift, noiseless, pollution-free; complete electrical

protecting controller device, against under-voltage, over-voltage, over-flow,

overload, waterless etc;automatic recovery; controlling water height as

demand.

2) Easy installation, maintenance-free, safe and reliable.

Max Head: 140m   Max flow: 2.3m3/h

Application:

1) These electric pumps series are workable within maximum head, as

there are no restrictions of BDC. With the addition of high head, high

efficiency and wide high efficiency zone, they are suitable for distance water

irrigation, high efficiency of increasing oxygen on aquaculture, pumping

water from deep well, gardening, fountain and etc.

Working condition:

1) Non-corrosive water; the volume ratio of sand content no more than 1‰

particle size less than 0.2mm.

2) Max medium temperature up to +40℃ ; PH value remains 6.5-8.5.

3) Work close to the rated head and must be immersed in water.

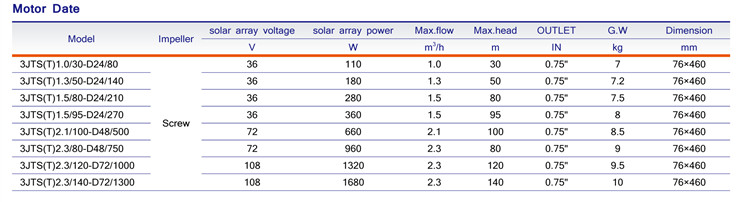

PERFORMANCE
