Profile:

Adopt stainless steel casing, shaft core, coupling, water entry base

and pump body (or copper alloy water entry base, pump body) to

avoid rust or corrosion, stainless steel impeller and stainless steel

blower inlet casing. New "floating style" structure of impeller avoids

axial pressure to motor. With combination of motor and controller, the

max efficiency is over 85%, raises 20% than the traditional AC one.

Material:

1) Stainless steel casing, shaft core, coupling and pump body;

copper alloy connecting, base; stainless steel impeller and stainless

steel inlet blower inlet casing.

2) Oil immersion style stainless steel submersible motor.

Application:

1) These electric pumps series are workable within maximum

head, as there are no restrictions of BDC. With the addition of

high head, high efficiency and wide high efficiency zone, they are

suitable for distance water irrigation, high efficiency of increasing

oxygen on aquaculture, pumping water from deep well, gardening,

fountain and etc.

Product Feature:

1) Compact structure, high-lift, noiseless, pollution-free; complete

electrical protecting controller device, against under-voltage, over-

voltage, over-flow,overload, waterless etc; automatic recovery;

controlling water height as demand.

2) Easy installation, maintenance-free, safe and reliable.

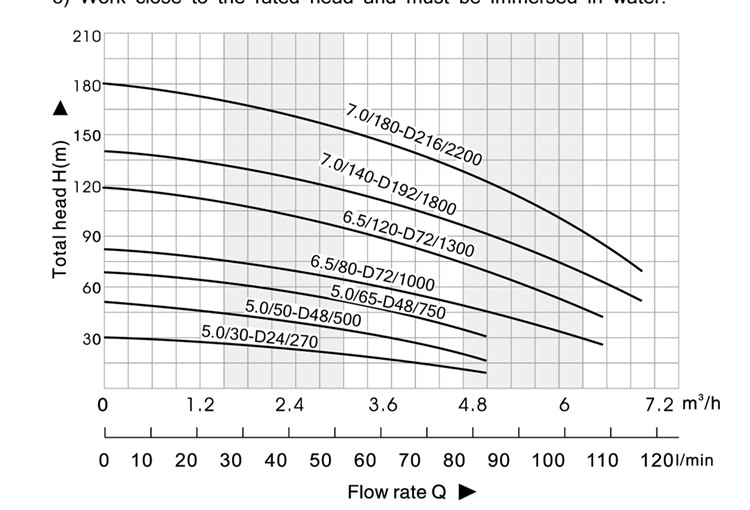

Max Head: 180m     Max flow: 6m3/h

Working condition:

1) Non-corrosive water; the volume ratio of sand content no more

than 3 ‰; particle size less than 1mm.

2) Max medium temperature up to +40℃ ; PH value remains 5-10.

3) Work close to the rated head and must be immersed in water.
